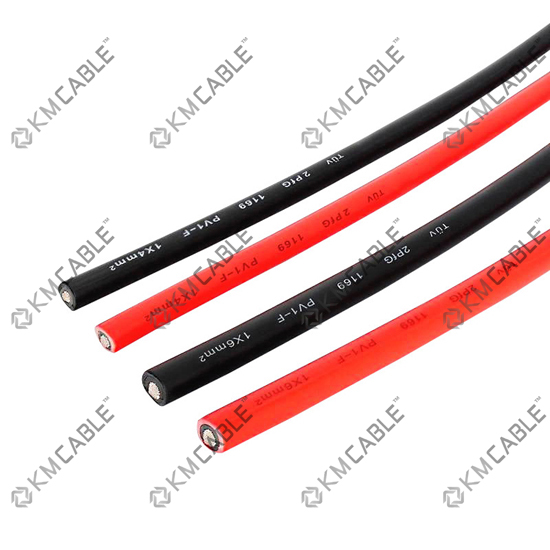

TUV 2 PFG 1169 PV1-F Photovoltaic system cable Solar Cable Single copper core Photovoltaic systcable

Product Details
Brand KMCABLE Code Single core
Core Single core conductor copper
Nominal voltage U0/U AC :  1,0/1,0 kV   DC :  1,5/1,5 kV Temperature (°C) - flexing -40°C  to  +90°C
Temperature (°C) - fixed -40 to +80℃ Color black/red
MOQ 500meter

Product Information



Brand    KMCABLE
Product Name    TUV 2 PFG 1169 PV1-F Photovoltaic system cable Solar Cable Single copper core Photovoltaic systcable
Application    The Solar cable is used for cabling solar modules.Suitable for direct burial. Recommendation: Laying in pipe.





Product Mix




Conductor

Tinned copper conductor,

fine wire acc. to DIN VDE 0295 cl.5 / IEC 60228 cl.5


Core insulation    special crosslinked compound
Core identification    DIN 47100,without colour repetition
Outer sheath    special crosslinked compound
Sheath colour    see table below
Packaging    Meter marking


Technical Parameter




Test voltage :

AC   6,5 kV

Operating peak voltage :

at the conductor   +120°C

Temperature range :

-40°C   to   +90°C

Minimum bending radius :

fixed installation 5x outer Ø



Product Details




tuv-2-pfg-1169-pv1-f-single-core-solar-cable09.jpgtuv-2-pfg-1169-pv1-f-single-core-solar-cable04.jpgtuv-2-pfg-1169-pv1-f-single-core-solar-cable08.jpgtuv-2-pfg-1169-pv1-f-single-core-solar-cable05.jpg
