SIEMENS Drive systems pre-assembled servo motor cables Industrial Circular Control Cable

Price：
$3.00
Consult immediately Reservation Now
Product Details
Brand KMCABLE Code Muilt-core
Core Muilt conductor copper
Nominal voltage U0/U power cores 4 kV control cores 2 kV Temperature (°C) - flexing flexing -20°C to +60°C fixed installation -50°C to +80°C
Temperature (°C) - fixed - Color Orange
MOQ 300M/Roll

Product Information


Brand    KMCABLE

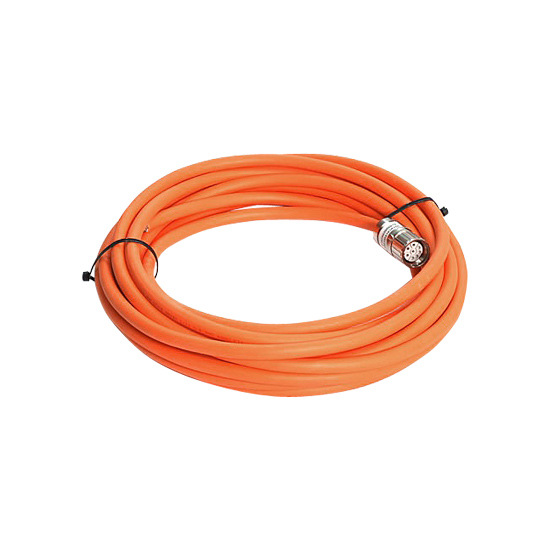

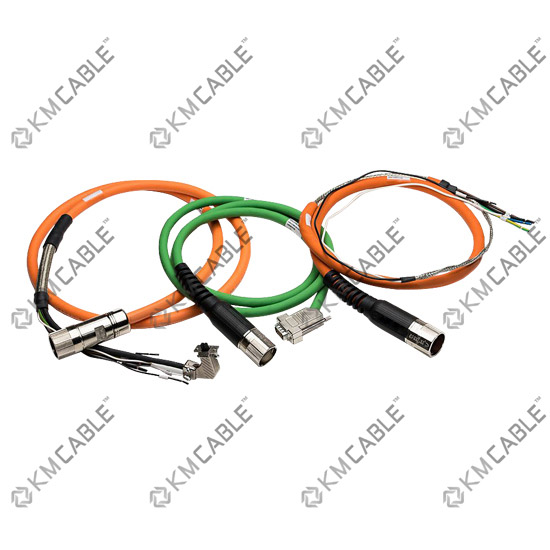

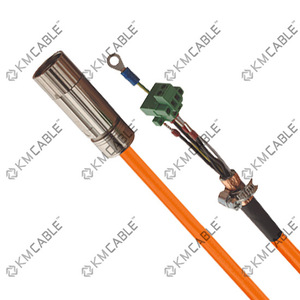

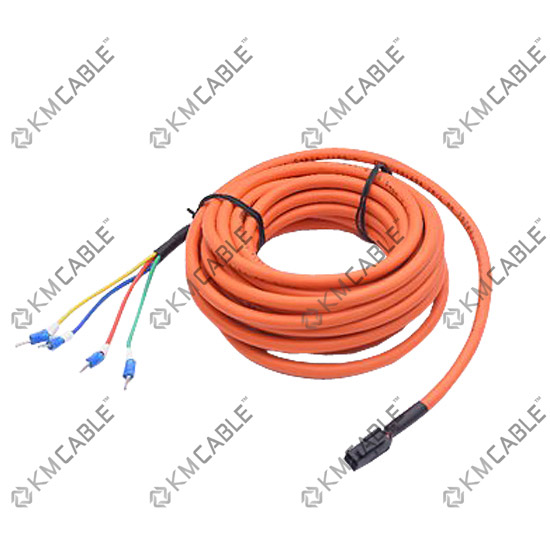

Product Name    SIEMENS Drive systems pre-assembled servo motor cables Industrial Circular Control Cable
Application    This high quality pre-assembled motor connection cable is specially manufactured for applications with static installation.The special PVC outer sheath allows use in many industrial environments of general machine and plant construction.

Product Mix


Conductor





Bare copper, extra fine wire conductor

acc. to DIN VDE 0295 cl.6


Wire Color    Muilt-core
Temp

flexing   0°C   to   +60°C

fixed installation   -20°C   to   +80°C

Insulation

PP

Screen

Complete shield of tin-plated copper

braiding, coverage approx. 80%

Sheath    PUR
Sheath colour    Orange
Packaging    Meter marking


Technical Parameter


Test voltage :





power cores 4 kV

control cores 2 kV

Temperature range :

flexing -20°C to +60°C

fixed installation -50°C to +80°C

Operating voltage :

VDE U0/U 600/1000 V

UL 1000 V


Product Details
