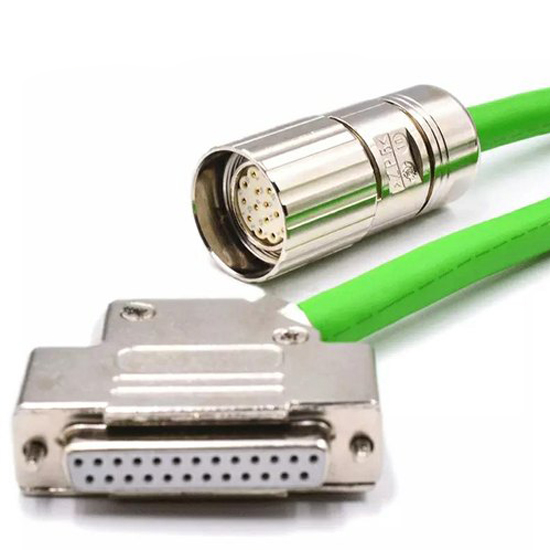

Servo motor line encoder cable Pre-assembled feedback cables for mobile use SIEMENS Control Cable

Product Information

Produc Mix

Bare copper, extra fine wire conductor

acc. to DIN VDE 0295 cl.6

flexing   0°C   to   +60°C

fixed installation   -20°C   to   +80°C

PP

Complete shield of tin-plated copper

braiding, coverage approx. 80%

Technical Parameter

power cores 4 kV

signal cores 1 kV

flexing   -20°C   to   +60°C

fixed installation   -50°C   to   +80°C

• (2x2x0,18)

• BK, BN, RD, OG

• (4x2x0,18)

• BK+BN, RD+OG, YE+GN, BU+VT

• (8x2x0,18)

• BK+BN, RD+OG, YE+GN, BU+VT,

• GY+WH, WH/BK+WH/BN,

• WH/RD+WH/OG, WH/YE+WH/GN

• (12x0,22)

• BK, BN, RD, OG, YE, GN, BU,

• VT, GY, WH, WH/BK, WH/BN

• (4x2x0,34+4x0,5)

• RD+OG, YE+GN, BU+VT, BK+BN,

• WH/RD, WH/YE, WH/BU, WH/BK

• (3x(2x0,14)+2x(0,5))

• RD+OG, YE+GN, BK+BN, BK, RD

• (3x(2x0,14)+2x0,5+4x0,14)

• RD+OG, YE+GN, BK+BN,

• BN/RD, BN/BU,

• GY, BU, WH/YE, WH/BK

• (3x(2x0,14)+2x0,5+4x0,14+4x0,22)

• RD+OG, YE+GN, BK+BN,

• BN/RD, BN/BU,

• GY, BU, WH/YE, WH/BK,

• BN/YE, BN/GY, GN/BK, GN/RD
