| Brand | KMCABLE | Code | Muilt-core | | Core | Muilt | conductor | copper | | Nominal voltage U0/U | 300 V | Temperature (°C) - flexing | -5°C to +50°C | | Temperature (°C) - fixed | -30°C to +70°C | Color | Green/customized | | MOQ | 100meter | | |

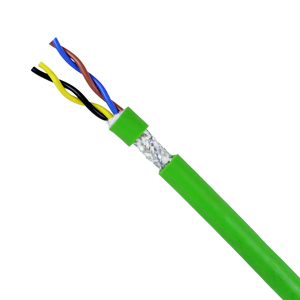

| Brand | KMCABLE | | Product Name | Green PVC Insulated Double shielded Twisted Pair Cable Servo Encoder Multicore Flexible copper wire | | Application | Flexible screened pair cable connection,as control,signaland measuring cablesin tool machinery,conveyor belts and,inplant construction,air conditioning,in foundries and steel mills. |
| Conductor | Copper wire bare, stranded |
| | Core insulation | semi-rigid PVC | | Core identification | DIN VDE 0815, colour coded | | Screen | braided screen of bare or tinned copper wires, approx. coverage 85% | | Outer sheath | PVC | | Sheath colour | Green/customized | | Packaging | Meter marking |
| Test voltage : |
core-500 V screen-2000 V | | Conductor resistance at 20°C : | 14,6 Ohm/km | | Temperature range : |
flexible -5°C to +50°C fixed -30°C to +70°C | | Mutual capacitance core/core : |
at 800 Hz 2 - 4 pairs: approx. 120 pF/m 8 - 40 pairs: approx. 100 pF/m
|

|
