LIYY Flexible DATA Cable Muilt-core PVC Insulated LIYY/LIHH/LIYCY Flexible Data Cable

Product Details
Brand KMCABLE Code Muilt-core
Core Muilt conductor copper
Nominal voltage U0/U 350V Temperature (°C) - flexing -5 to +80℃
Temperature (°C) - fixed -40 to +80℃ Color Gray
MOQ 500meter

Product Imformation


Brand    KMCABLE
Product Name    LIYY Flexible DATA Cable Muilt-core PVC Insulated LIYY/LIHH/LIYCY Flexible Data Cable
Application    These cables are used for flexible use with free movement without tensile stress or forced movements in dry, moist and wet rooms but not suitable for open air, wherever the construction requirements call for a minimum outer diameter, TRONIC is the suitable cable to use. This applies especially to such areas as tool making and machine industries as well as electronic, computer, measurement and control sectors.



Product Mix



Conductor    Bare copper,from 0,5 mm² to DIN VDE 0295 cl.5, fine-wire, BS 6360 cl.5, IEC 60228 cl.5


Conductor construction

0,14 mm² = 18x0,1 mm

0,25 mm² = 14x0,15 mm

0,34 mm² = 7x0,25 mm

Core insulation    Special PVC
Core identification    DIN 47100,without colour repetition
Outer sheath    Special PVC
Sheath colour    Grey
Packaging    Meter marking



Technical Parameter




Test voltage :

up to 0,25 mm² 1200 V

from 0,34 mm² 2000 V

Operating peak voltage :

0,14 mm² = 350 V

0,25 mm² = 500 V

Temperature range :

flexing -5°C to +80°C

fixed installation -40°C to +80°C

Minimum bending radius :

flexing 7,5x cable Ø

fixed installation 4x cable Ø

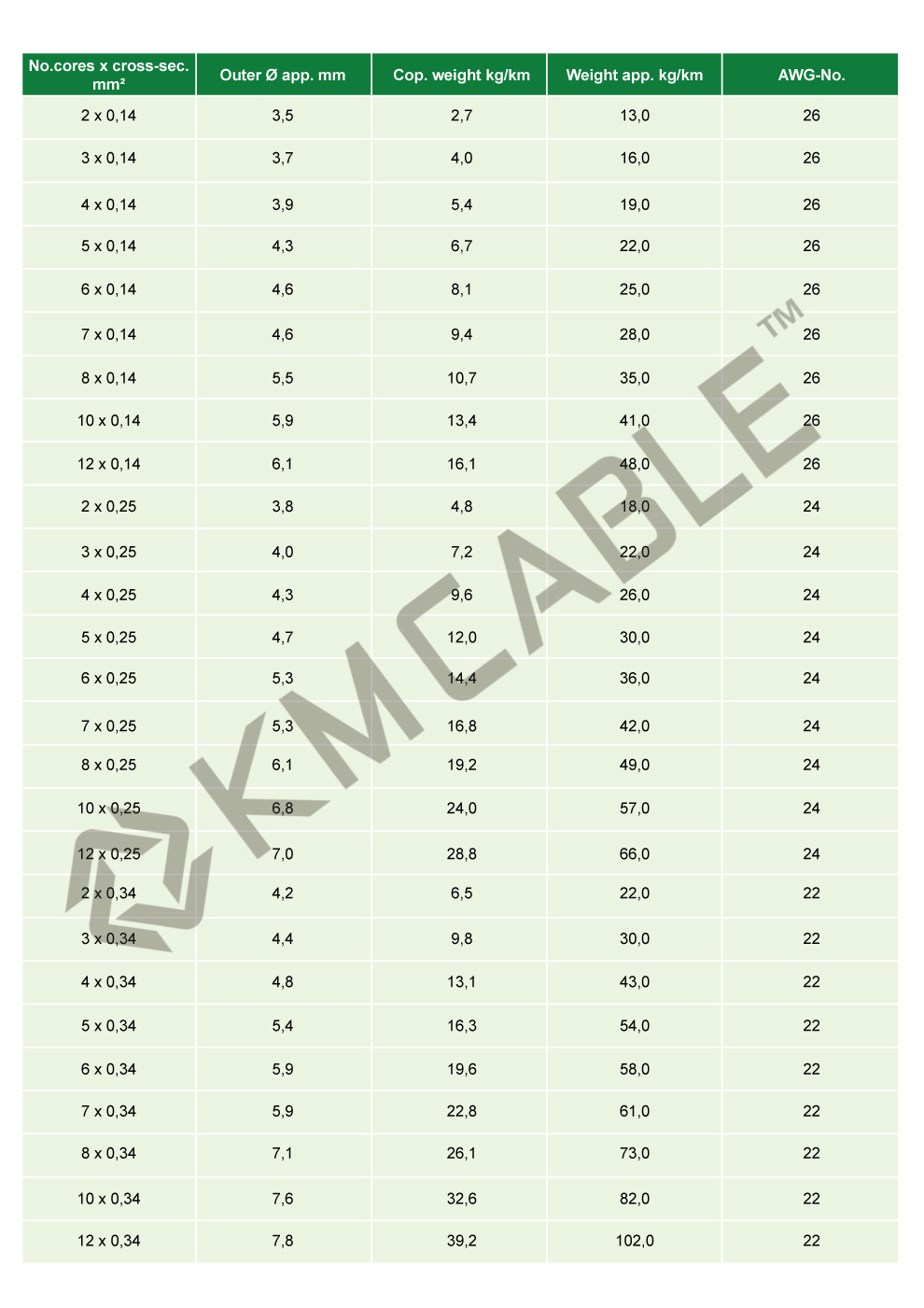

liyy-lihh-liycy-flexible-muilt-core-pvc-data-cable07.jpgliyy-lihh-liycy-flexible-muilt-core-pvc-data-cable05.jpg

liyy-lihh-liycy-flexible-muilt-core-pvc-data-cable06.jpgliyy-lihh-liycy-flexible-muilt-core-pvc-data-cable07.png
