| Brand | KMCABLE | Code | 4 Core | | Core | 4 Core | conductor | copper | | Nominal voltage U0/U | U0/U 600/1000 V | Temperature (°C) - flexing | -15°C to +80°C | | Temperature (°C) - fixed | -40°C to +80°C | Color | Black | | MOQ | 100meter | | |

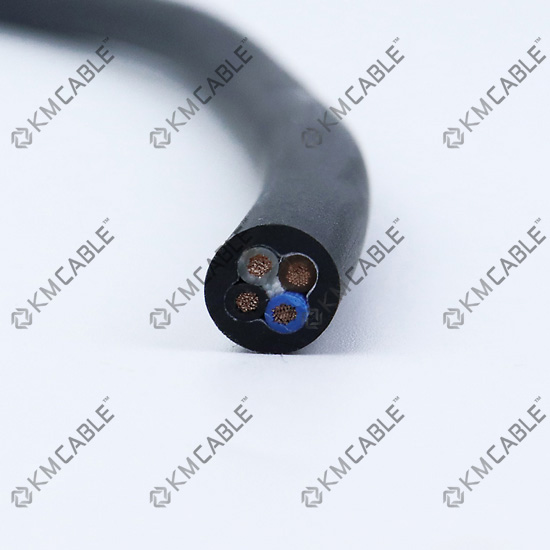

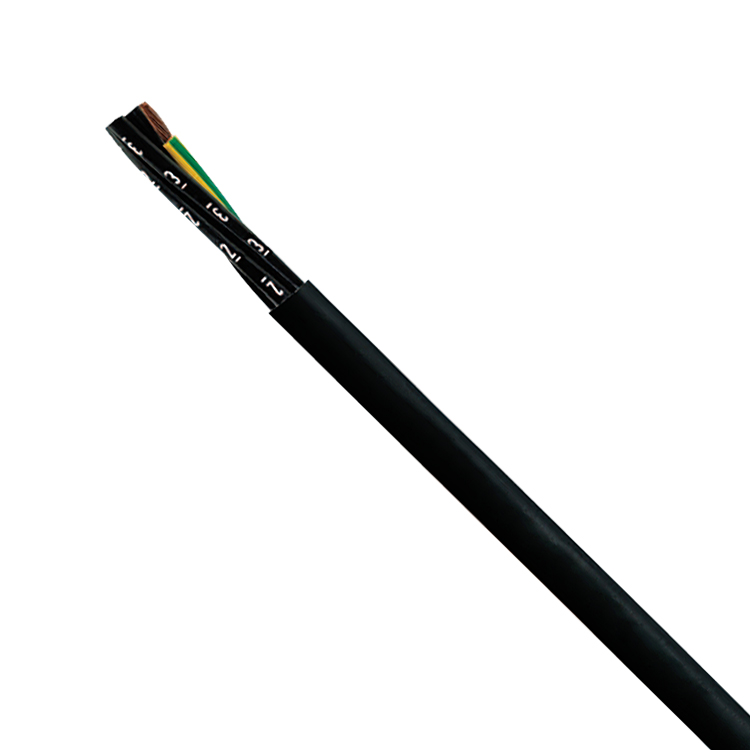

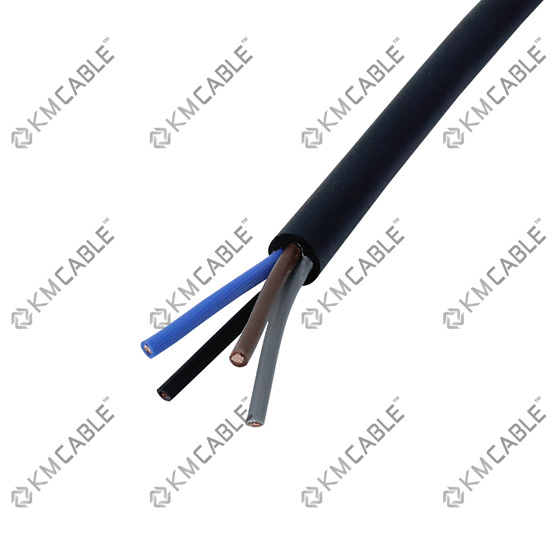

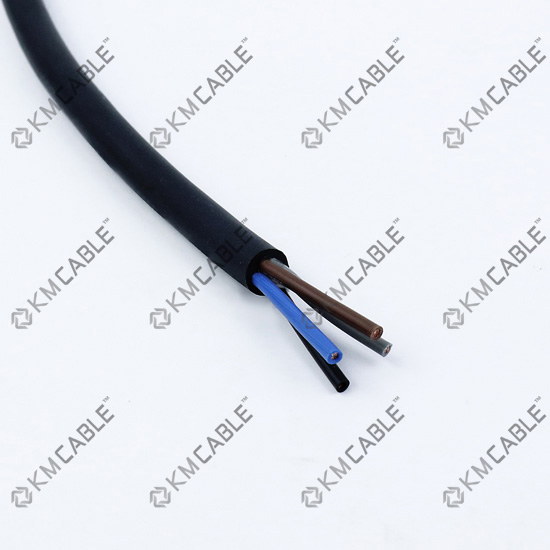

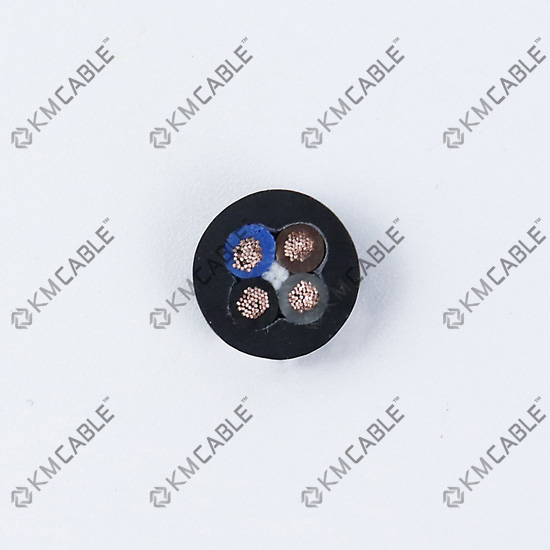

| Brand | KMCABLE | | Product Name | KFLEX-servo cables bare copper wire flexible PVC Low-capacitance data control cable | | Application | Used as a supply line for electronically controlled servo motors and for connection to DNC motors. The cable is suitable for fixed and flexible installation with medium mechanical loads, in dry, damp and wet rooms. |
| Conductor |
Bare copper conductor, to DIN VDE 0295 cl.5, fine wire, IEC 60228 cl.5 |
| | Core insulation | PVC | | Core identification | DIN VDE 0293 black cores with continuous white numbering | | Outer sheath | special PVC | | Sheath colour | Black | | Packaging | Meter marking |
| Test voltage : | 4000 V
| | Breakdown voltage: | min. 8000 V | | Temperature range : |
flexing -15°C to +80°C
fixed installation -40°C to +80°C | | Mutual capacitance core/core : |
flexing 7,5x outer Ø
fixed installation 4x outer Ø
|

|
