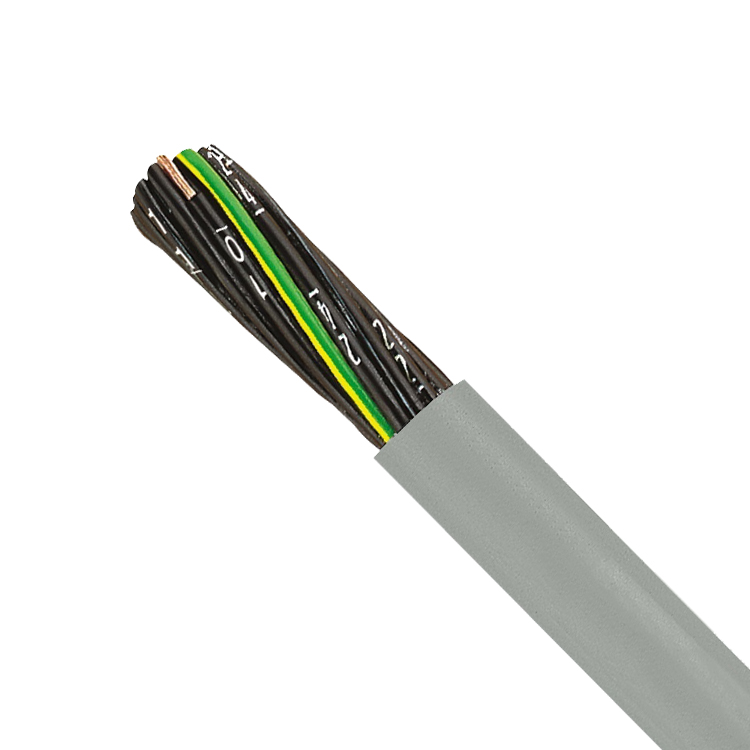

KMCABLE High Flexible Cable Muilt-core PVC Insulated JZ-HF Drag Chain Cable

Price：
$1.00
Consult immediately Reservation Now
Product Details
Brand KMCABLE Code Muilt-core
Core Muilt conductor copper
Nominal voltage U0/U U0/U 300/500 V Temperature (°C) - flexing -10°C  to  +80°C
Temperature (°C) - fixed -40°C  to  +80°C Color Gray
MOQ 500meter

Product Information



Brand    KMCABLE
Product Name    KMCABLE High Flexible Cable Muilt-core PVC Insulated JZ-HF Drag Chain Cable
Application    JZ-HF cables are ideal for use in the machine tool industry, in robotics and machine production and anywhere where high flexibility is essential. The cables are suitable for installation in dry and moist environments but not in open air. These cables have shown excellent performance in combination with standard cable trays. These cables are suitable for flexible use for medium mechanical stresses with free movements.





Product Mix





Conductor

Bare copper conductor,

extra fine wire acc. to

DIN VDE 0295 cl.6, col. 4 / IEC 60228 cl.6


Core insulation    Special PVC
Core identification    DIN VDE 0293 black cores with continuous white numbering
Outer sheath    Special PVC
Sheath color    Grey
Packaging    Meter marking




Technical Parameter






Test voltage :

4000 V

Nominal voltage :

U0/U 300/500 V

Temperature range :

flexing   -10°C   to   +80°C

fixed installation   -40°C   to   +80°C

Minimum bending radius :

flexing 7,5x cable Ø

fixed installation 4x cable Ø




Product Details




jz-hf-drag-chain-cable-flexible-muilt-core-cable08.jpgjz-hf-drag-chain-cable-flexible-muilt-core-cable09.jpgjz-hf-drag-chain-cable-flexible-muilt-core-cable01.jpg
