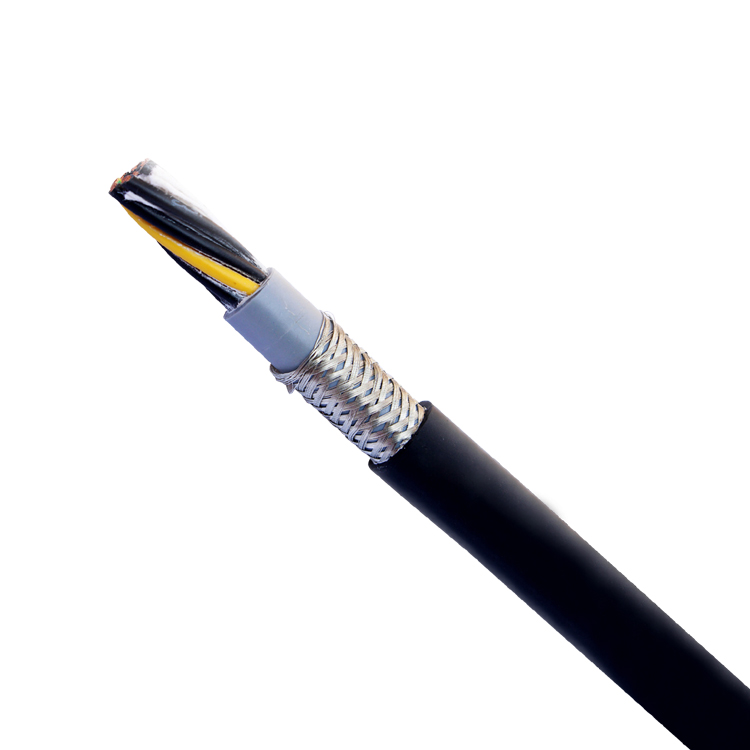

HKFLEX-Servo-PUR-CY Double Flexible Servo Drag chain cable PUR Sheath Copper Screen Servo cable

Product Details
Brand KMCABLE Code Muilt-core
Core Muilt conductor copper
Nominal voltage U0/U U0/U 600/1000 V Temperature (°C) - flexing -50°C  to  +90°C
Temperature (°C) - fixed -40°C  to  +80°C Color Black/Gray/Orange
MOQ 500meter

Product Information


Brand

KMCABLE
Product Name    HKFLEX-Servo-PUR-CY Double Flexible Servo Drag chain cable PUR Sheath Copper Screen Servo cable
Application    Suitable for shielding external signal occasions, inverter and servo motor, DNC motor power connection, especially suitable for the surrounding environment of mineral oil, grease, coolant, hydraulic oil in the use of drag chain, power drag chain, robot, CNC machine tools, machining centers, operating equipment in the ideal cable.


Product Mix



Conductor


Bare copper conductor, to

DIN VDE 0295 cl.6,


Core insulation    Oil resistant TPE-E Insulated core,to DIN VDE 0281
Core identification

DIN VDE 0293

black cores with continuous white

numbering

Yellow-Green Ground wire

Inner sheath
TPE
Outer sheath    PUR
Screen    Tin plated copper wire braided shield,Up to 85% coverage
Sheath colour    Black/Gray/Orange/customized
Packaging    Meter marking



Technical Parameter




Test voltage :

4000 V

Rated voltage:

600/1000V

Temperature range :

flexing   -30°C   to   +80°C
fixed installation   -50°C   to   +90°C

Minimum bending radius :

10 x Φ




Product Details




hkflex-servo-pur-cy-flexible-screen-servo-cable.jpghkflex-servo-pur-cy-flexible-screen-servo-cable07.jpghkflex-servo-pur-cy-flexible-screen-servo-cable02.jpghkflex-servo-pur-cy-flexible-screen-servo-cable06.jpg
