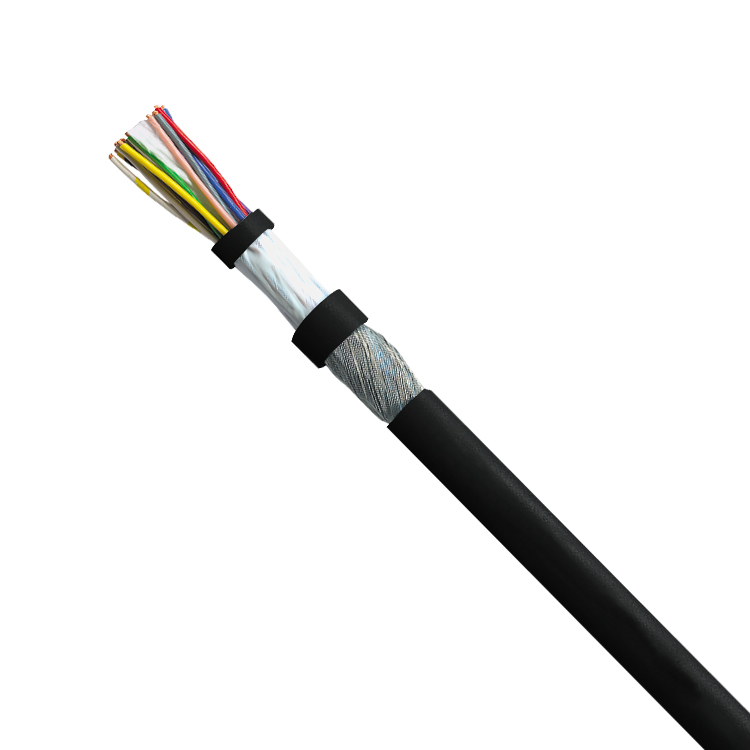

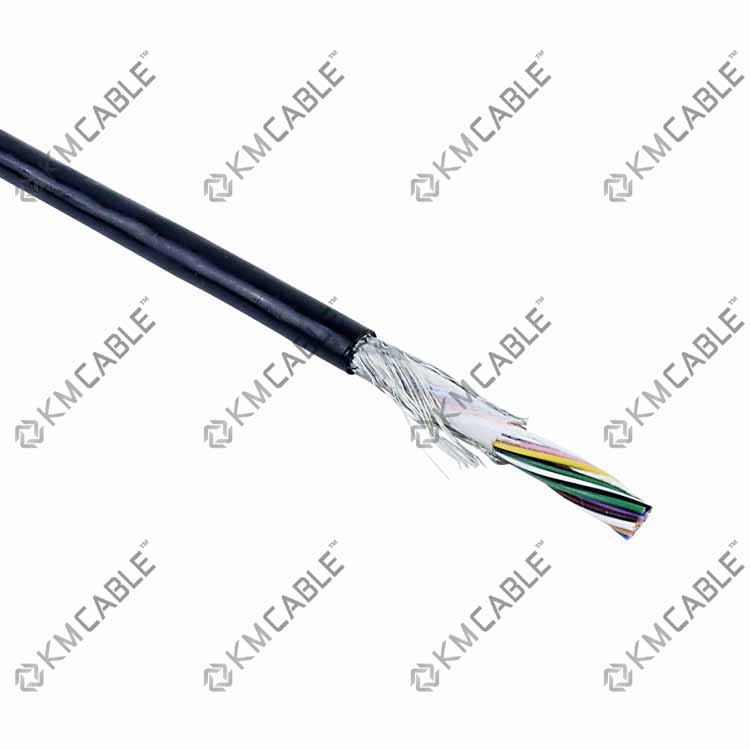

KMCABLE Robot Flexible cables Electric power wire muilt-core special robot Control cables
|
These special robotic control and signal cables specially designed for torsion and bending stresses in robots and connecting handling tools.
|
| conductor | Multi stranded annealed bare copper wire or tinned copper wire |
|
| Core insulation | Special PP |
| Core identification | up to 0,34 mm² acc.to DIN 47100 above 0,5 mm² acc.to DIN VDE 0293 black cores with continuous white numbering |
| Screen | 85-95% coverage |
| Outside Insulation | special PVC |
| Sheath colour | Black |
| Packaging | Meter marking |
| Test voltage : |
up to 0,34 mm² 1,5 kV, 5 minutes from 0,5 mm² 3,0 kV, 5 minutes |
| Rated temperature : | flexing -30°C to +80°C fixed installation -40°C to +80°C |
| Nominal voltage : |
up to 0,34 mm² 350 V (operating peak voltage) from 0,5 mm² U0/U 300/500 V
|
