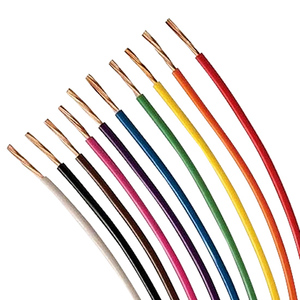

1.25 mm2 single core cable JASO D611 Japan Standard Wire AV Wire AVS PVC Insulation Automotive Wire
AV type Automotive PVC insulated single-Core cable is used for low voltage circuits in automobiles, vehicles and motorcycles. |
| Conductor |
Cu-ETP1 according to JIS C3102Cu-ETP1 according to JIS C3102 |
|
| Core | Single core |
| Temp |
–40 °C to +85 °C |
| Insulation | PVC |
| Sheath colour | Red, Black, White, etc. |
| Packaging | Meter marking |
| Test voltage : | 60V |
| Temperature range : |
–40 °C to +85 °C |
| Standard Compliance : |
JIS C 3406 |
